Room Bar

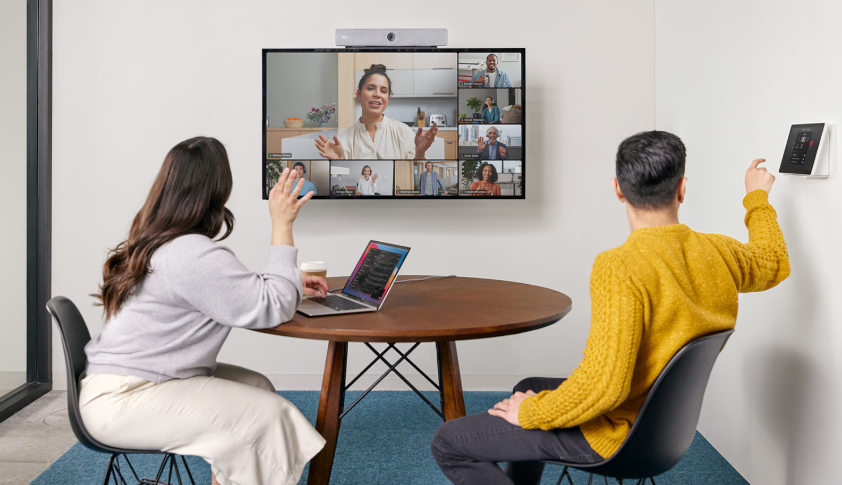

SAMPLE Workspace 1

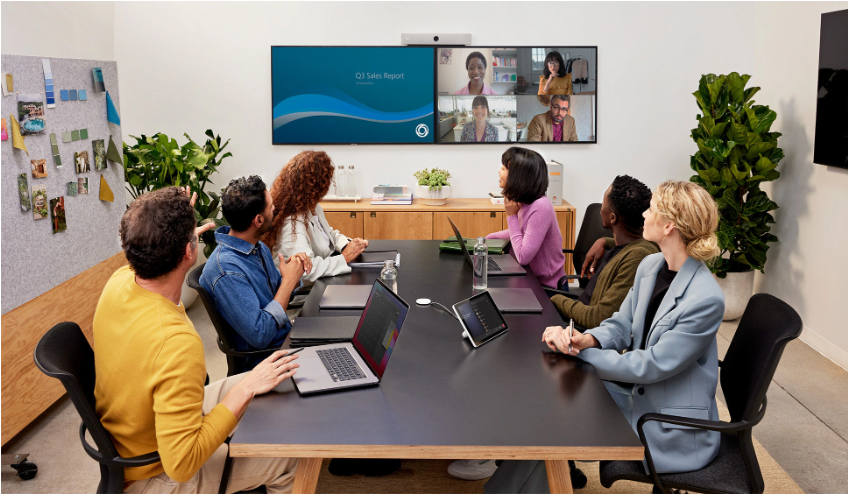

SAMPLE Workspace 2


features

  • Full HD & 4K content sharing
  • Dual-screen support
  • Integrated, codec-powered video collaboration bar featuring 12MP camera
  • Noise cancelling microphone array
  • Stereo loudspeaker system with 2 high-quality full range supporting directional audio
  • 120-degree horizontal field of view
  • Frames Mode: Automatically captures a condensed view of in-room participants and frames them individually
  • Speaker Tracking: When enabled, it uses a dedicated microphone array to detect and provide prominent view for the active speaker
  • BYOD: Connect your laptop with Room Bar via a single USB-C to use the camera, microphones, and speakers of the device for an instant studio.
  • 4K wireless content (Webex App, Miracast, Apple Airplay, Microsoft Teams Cast)
  • Video inputs
    • 1x HDMI input
    • 1x USB-C input
  • Video outputs:
    • 2x HDMI outputs
  • Audio inputs:
    • 1 HDMI input
    • 1 analog microphone input
    • 1 DisplayPort/USB-C input
    • 1 USB-A input
    • Bluetooth ® - Not available on Non-Radio Version **
    • 1x PoE supporting audio over IP for one Cisco IP microphone
  • Audio outputs
    • 1 DisplayPort/USB-C output
    • 1 USB-A output
    • Bluetooth ® - Not available on Non-Radio Version **
  • Network interfaces
    • 1x Ethernet 100/1000 Mbps for LAN
    • 1x Ethernet 100/1000 Mbps PoE port for Cisco Room Navigator
    • Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz, 2x2 (MIMO)
  • Other interfaces
    • 1 USB 2.0 port type A (for USB microphone or other USB peripherals)
    • 1 micro-USB port (service port)
    • Factory reset pinhole
  • Comes with the Cisco Room Navigator control unit
  • Unified management in Control Hub
Note:

  • The internal microphone array is optimized for use in huddle spaces and small meeting rooms with up to 5 people seated within 3 meters.
  • In mid-sized meeting rooms with more than 5 people, we recommend adding an external microphone to ensure the best audio experience.
  • Cisco Room Bar has a 90-day limited liability warranty.

ordering guide

CS-BAR-T-K9
with Table-stand Room NavigatorFirst Light Color
CS-BAR-T-C-K9with Table-stand Room NavigatorCarbon Color
CS-BAR-W-K9
with Wall-mount Room NavigatorFirst Light Color
 CS-BAR-W-C-K9with Wall-mount Room Navigator
Carbon Color

optional parts

Cisco Room Navigator-Table Stand, First Light (White), SPARE
CS-T10-TS-L-K9=
Table Stand Navigator
Cisco Room Navigator Wall Mount, First Light (White) - SPARE
CS-T10-WM-L-K9=
Wall Mount Navigator
Cisco Table Microphone Pro, First Light SPARE
CS-MIC-ARRAY-C=
Table MIC
Cisco Table Microphone Pro, Carbon Black - SPARE
PSU-12VDC-86W-
Table MIC
Cisco Ceiling Microphone Pro, Arctic White - SPARE
CS-MIC-CLGPRO=
Celling MIC
Cisco Ceiling Microphone Pro, Carbon Black - SPARE
CS-MIC-CLGPRO-C=
Celling MIC
Cisco Table Microphone with Jack plug spare
CS-MIC-TABLE-J=
Table MIC
Cable 1.5m GREY HDMI 2.0
CAB-2HDMI-1.5M-GR=
HDMI Cable
Cisco Multi-head Cable 2.5 meters (4K, USB-C, HDMI, miniDP)CAB-HDMI-MUL4K-2M=HDMI Cable
Cisco Multi-head Cable 9 meters (4K, USB-C, HDMI, miniDP)
CAB-HDMI-MUL4K-9M=
HDMI Cable
Presentation cable 8m GREY HDMI 1.4b (with repeater)
CAB-PRES-2HDMI-GR=
HDMI Cable
USB-C 3.1 Cable, 1.8m length
CAB-USBC-1.8M=
USB Cable
Active Optical Cable, USB-C 3.1, 9M long, USB Charging
CAB-USBC-AC-9M=
USB Cable
CAT5E Ethernet Cable for Room Navigator, Grey 12m
CAB-CAT5E-12M=
Ethernet Cable
CAT5E Ethernet Cable for Room Navigator, Grey 8m
CAB-CAT5E-8M=
Ethernet Cable
CAT5E Ethernet Cable for Room Navigator, Grey 4m
CAB-CAT5E-4M=
Ethernet Cable
Cable 5m Ethernet, Grey
CAB-ETH-5M-GR=
Ethernet Cable
Power Supply - AC/DC, 12V, 7.0A, 86.1W grey
PSU-12VDC-86W=
Power Supply
Mounting Kit for Cisco Room Bar - Spare
CS-BAR-MOUNT=
Mounting Kit
Spare Camera Privacy Cover
CS-KITMIN-CAM-COV=
Camera Cover

Default box components

Cisco Room Bar
Cisco Room Navigator (table-stand or wall-mount)CS-T10-TS-G- or CS-T10-WM-G-
Cable HDMI 2.0 Grey, 1.5m
CAB-2HDMI-1.5M-GR-
Power Supply - AC/DC, 12V, 7.0A, 86.1W GreyPSU-12VDC-86W-
Camera Privacy Cover for Room Bar
CS-KITMIN-CAM-COV-
Flat Ethernet Cable for Room Navigator, Grey 8m
CAB-DV10-8M+
Mounting Kit for Cisco Room Bar
CS-BAR-MOUNT-KIT-

questions

  How to FIND OUT the Subscription ID?
