room bar

Workspace 1

Wall Mount Navigator


Workspace 2

Table Stand Navigator

features


  • Full HD & 4K content sharing
  • Dual-screen support
  • Integrated codec with 12MP camera
  • Noise cancelling microphone
  • Stereo loudspeaker system with 2 high-quality audio
  • 120-degree horizontal field of view
  • Frames Mode: Captures a condensed view of in-room participants and frames them individually
  • Speaker Tracking: When enabled, uses a dedicated microphone to detect and provide view of active speaker
  • BYOD: Connect laptop via a single USB-C to use the camera, microphones, and speakers of the device.
  • 4K wireless content sharing via (Webex App, Miracast, Apple Airplay, Microsoft Teams Cast)
  • Video inputs
    • 1x HDMI input
    • 1x USB-C input
  • Video outputs:
    • 2x HDMI outputs
  • Audio inputs:
    • 1 HDMI input
    • 1 analog microphone input
    • 1 DisplayPort/USB-C input
    • 1 USB-A input
    • Bluetooth ® - Not available on Non-Radio Version **
    • 1x PoE supporting audio over IP for one Cisco IP microphone
  • Audio outputs
    • 1 DisplayPort/USB-C output
    • 1 USB-A output
    • Bluetooth ® - Not available on Non-Radio Version **
  • Network interfaces
    • 1x Ethernet 100/1000 Mbps for LAN
    • 1x Ethernet 100/1000 Mbps PoE port for Cisco Room Navigator
    • Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz, 2x2 (MIMO)
  • Other interfaces
    • 1 USB 2.0 port type A (for USB microphone or other USB peripherals)
    • 1 micro-USB port (service port)
    • Factory reset pinhole
  • Comes with the Cisco Room Navigator control unit
  • Unified management in Control Hub
Note:

  • The internal microphone is optimized for use in huddle spaces and small meeting rooms with up to 5 people seated within 3 meters.
  • Cisco Room Bar has a 90-day limited liability warranty.

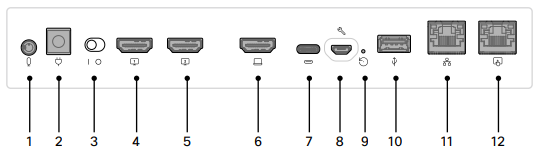

connector panel

  1. Analog microphone input
  2. Power
  3. Power switch
  4. HDMI out: primary screen
  5. HDMI out: second screen
  6. HDMI in: content sharing
  7. USB-C: USB-passthrough and content sharing
  8. Maintenance (micro USB)
  9. Factory reset
  10. USB-A
  11. Network (Ethernet)
  12. Room Navigator (touch interface)

ordering guide


CS-BAR


Bundle SKU
CS-BAR-T-K9with Table-stand Room NavigatorFirst Light ColorStandalone SKU
CS-BAR-T-C-K9with Table-stand Room NavigatorCarbon ColorStandalone SKU
CS-BAR-W-K9
with Wall-mount Room NavigatorFirst Light ColorStandalone SKU
 CS-BAR-W-C-K9with Wall-mount Room Navigator
Carbon ColorStandalone SKU
CS-MIC-TABLE-JCisco Table Microphone with Jack plug Only 1 Color (-L) 7.5 mTable MIC (Supports only 1 Jack Plug based Mic)
CAB-USBC-1.8MUSB-C CableFor Content Sharingif USB-C Needed
CAB-2HDMI-1.5M-GRHDMI CableFor Content Sharingif HDMI Needed
A-FLEX-3Device Registration LicenseFor Webex Control HubNot required for MTR only use case (Microsoft Control Hub)
optional parts


CS-T10-TS-L-K9=
Table Stand NavigatorCisco Room Navigator-Table Stand, First Light (White), SPARE
CS-T10-WM-L-K9=
Wall Mount NavigatorCisco Room Navigator Wall Mount, First Light (White) - SPARE
CS-MIC-ARRAY-C=
Table MICCisco Table Microphone Pro, First Light SPARE
PSU-12VDC-86W-
Table MICCisco Table Microphone Pro, Carbon Black - SPARE
CS-MIC-CLGPRO=
Celling MICCisco Ceiling Microphone Pro, Arctic White - SPARE
CS-MIC-CLGPRO-C=
Celling MICCisco Ceiling Microphone Pro, Carbon Black - SPARE
CS-MIC-TABLE-J=
Table MICCisco Table Microphone with Jack plug (7.5 m)
CAB-2HDMI-1.5M-GR=
HDMI CableCable 1.5m GREY HDMI 2.0
CAB-HDMI-MUL4K-2M=HDMI CableCisco Multi-head Cable 2.5 meters (4K, USB-C, HDMI, miniDP)
CAB-HDMI-MUL4K-9M=
HDMI CableCisco Multi-head Cable 9 meters (4K, USB-C, HDMI, miniDP)
CAB-PRES-2HDMI-GR=
HDMI CablePresentation cable 8m GREY HDMI 1.4b (with repeater)
CAB-USBC-1.8M=
USB-C CableUSB-C 3.1 Cable, 1.8m length
For Content Sharing
CAB-USBC-AC-9M=
USB-C CableActive Optical Cable, USB-C 3.1, 9M long, USB Charging
CAB-CAT5E-12M=
Ethernet CableCAT5E Ethernet Cable for Room Navigator, Grey 12m
CAB-CAT5E-8M=
Ethernet CableCAT5E Ethernet Cable for Room Navigator, Grey 8m
CAB-CAT5E-4M=
Ethernet CableCAT5E Ethernet Cable for Room Navigator, Grey 4m
CAB-ETH-5M-GR=
Ethernet CableCable 5m Ethernet, Grey
PSU-12VDC-86W=
Power SupplyPower Supply - AC/DC, 12V, 7.0A, 86.1W grey
CS-BAR-MOUNT=
Mounting KitMounting Kit for Cisco Room Bar - Spare
CS-KITMIN-CAM-COV=
Camera CoverSpare Camera Privacy Cover
Default box components


CS-BARCisco Room Bar
CS-T10-TS-L- or CS-T10-WM-L-Cisco Room Navigator (table-stand or wall-mount)1
CAB-2HDMI-1.5M-GR-Cable HDMI 2.0 Grey, 1.5m to Connect Room Bar to Display
1
PSU-12VDC-86W-
Power Supply - AC/DC, 12V, 7.0A, 86.1W Grey1
CS-KITMIN-CAM-COV-
Camera Privacy Cover for Room Bar
1
CAB-DV10-8M+
Flat Ethernet Cable Grey 8m to Connect for Room Navigator
1
CS-BAR-MOUNT-KIT-
Mounting Kit for Cisco Room Bar
1
CAB-ETH-5M-GR=Cable 5m Ethernet Grey to Connect Room Bar to Network1
References


Room Bar pro

estimate

CS-BARPRO-K9
Cisco Room Bar Pro, First LightTop Level SKU
CON-ECDN-CSBARPK9ESS WITH 8X5XNBD Cisco Room Bar Pro First LightSupport & Warranty SLA
PWR-CORD-IND-F
Power Cord for India 5m 10APower Cord
CAB-CAT5E-8M-Ethernet CAT5E Round Cable - 8 meter - Gray
 CAT 5 Cable
CS-T10-TS-L-
Cisco Room Navigator Table Stand, First Light (White)Room Navigator
CAB-2HDMI-1.5M-GR-
1.5m GREY HDMI 2.0
HDMI Cable
CAB-ETH-5M-GR-
CAB (16,4 feet / 5m) GREY ETHERNET
CAT 5 Cable
CS-BARPRO-MOUNT-Mounting Kit for Cisco Room Bar ProMounting Kit
CAB-USBC-AC-9M=USB-C 3.1 Active Optical Cable, 9M length - SPAREUSB-C Type Cable
A-FLEX-3
  • SVS-FLEX-SUPT-BAS
  • A-FLEX-C-DEV-REG
  • A-FLEX-P-CALL
  • A-FLEX-C-DEV-ENT
Collaboration Flex Plan 3.0
  • Basic Support for Flex Plan (0 Value)
  • Cloud Device Registration
  • Prem to Webex Calling / UCM Cloud (0 Value)
  • Cloud Device Registration Entitlement (0 Value)
Cloud Device Registration License

resources

References


FAQs


Configuration


What are the Prerequisite for VC Demo?

  1. No. of Power Sockets x 1
  2. Following IPv4 information needed for configuring the device
    • IP for the device
    • Subnet mask
    • Gateway IP
    • DNS IP
  3. Domain address
  4. Below are the firewall ports needs to be opened on the firewall for device registration and Webex meetings.
    • Gatekeeper Discovery (RAS) - Port 1719 – TCP
    • Q.931 call Setup - Port 1720 – TCP
    • H.245 - Port Range 5555-5574 – TCP
    • Video - Port Range 2326-2485 – UDP
    • Audio - Port Range 2326-2485 – UDP
    • Data/FECC - Port Range - 2326-2485 – UDP
    • SIP messages - Port 5060 - UDP/TCP
    • SIP messages - Port 5061 - TLS(TCP)
    • H.245 - Port Range 5555-5574 – TCP
    • Video - Port Range 2326-2485 – UDP
    • Audio - Port Range 2326-2485 – UDP
